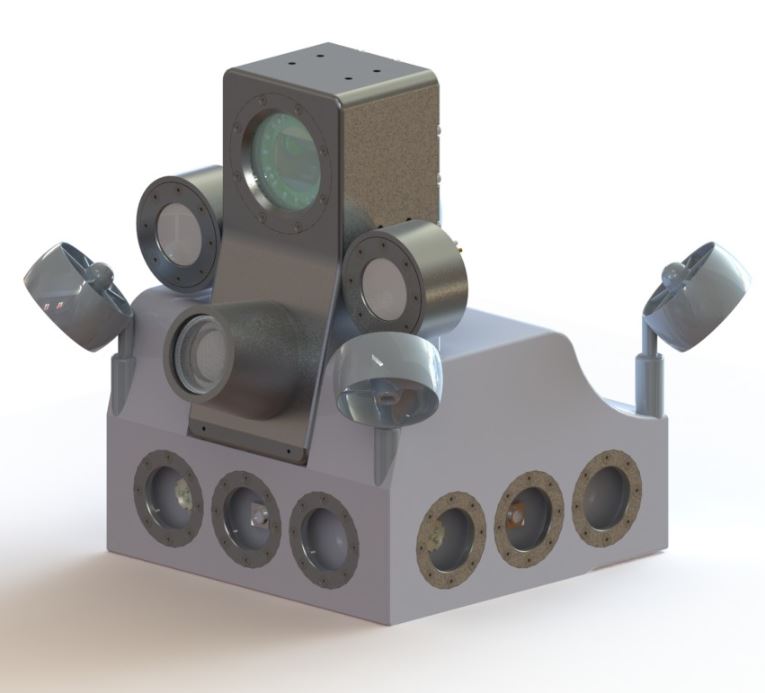

SW1000 Underwater Drone
SW1000 Underwater Drone



Scanner control console
The SW1000 console includes control box, with monitor and keyboard. For transport, the monitor and keyboard are securely stowed within the electronics rack.
Newton Labs Scanner control console Scanner control console Scanner control console Scanner control console Newton Labs

For information on Newton Labs underwater products, please contact:
sales@newtonlabs.com

Specifications for the SW1000 Underwater Drone
Mounted with the Newton NM200EVT-1

For full details on the NM200EVT-1 Laser Scanner, please click here: Newton NM200EVT-1 Underwater Laser Scanner

Item Control Unit Camera Head
Technical Specifications
System Performance
Item
SW1000 Drone
Control Unit

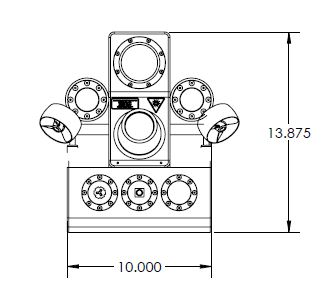

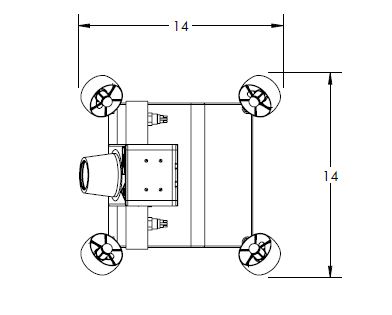

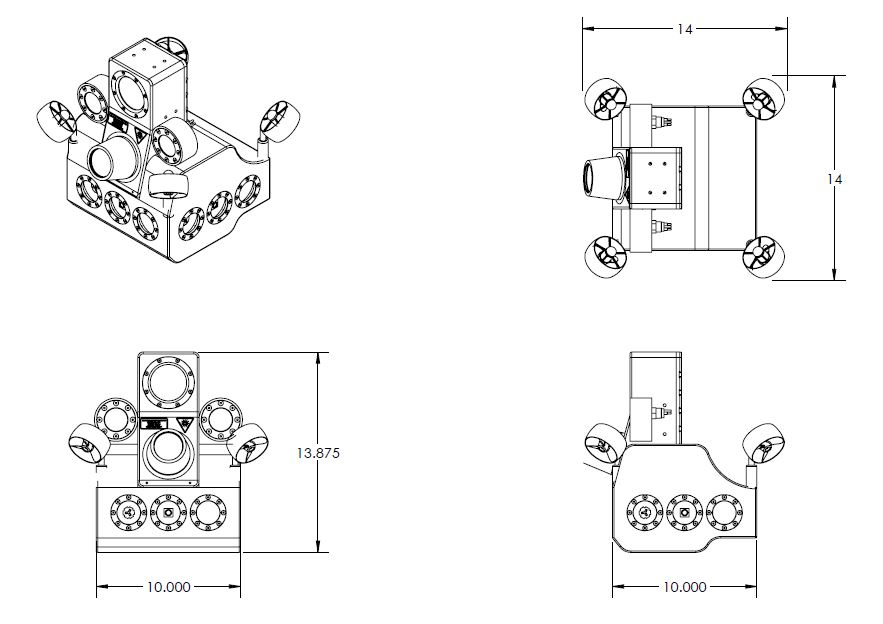

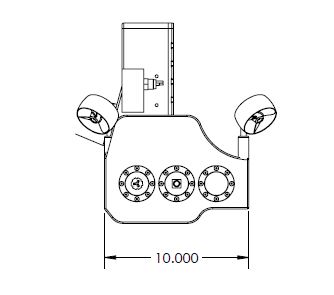

Height 13.875 in. (352.425 mm) 14.75 in. (374.65 mm)
Width 10 in. (254 mm) 26.75 in. (679.45 mm)
Length 10 in. (254 mm) 27.50 in. (698.5 mm)
Weight (in air) 24 lbs. (10.9 kg) 84.5 lbs. (38.3 kg)
Weight (in water) Neutrally Buoyant ---
Construction Hard Anodized Aluminum Metal electronics rack suspended on eight shock absorbers within a molded, high-impact, airline-transportable case
LED ring arrays Adjustable Output High Intensity LED ---
Windows Nuclear Rated Glass ---
Output ports --- Ethernet, USB, DVI, VGA & HDMI
Operating temperature 40° to 120° F (5° to 49° C) 40° to 110° F (5° to 43° C)
Storage temperature 0° to 125° F (-18° to 52° C) 0° to 125° F (-18° to 52° C)
Power input voltage/current Powered by the Control unit 100/240 VAC 50/60 cycle @ 15 Amps
Data storage --- Internal solid state drive & USB stick data
Maximum scanner-to-target distance 1 Meter (36") ---
Minimum scanner-to-target distance 150mm (6") ---
Watertight depth rating 50 Meters (164 ft) ---
