SW1050 Underwater ROV
SW1050 Underwater Inspection ROV

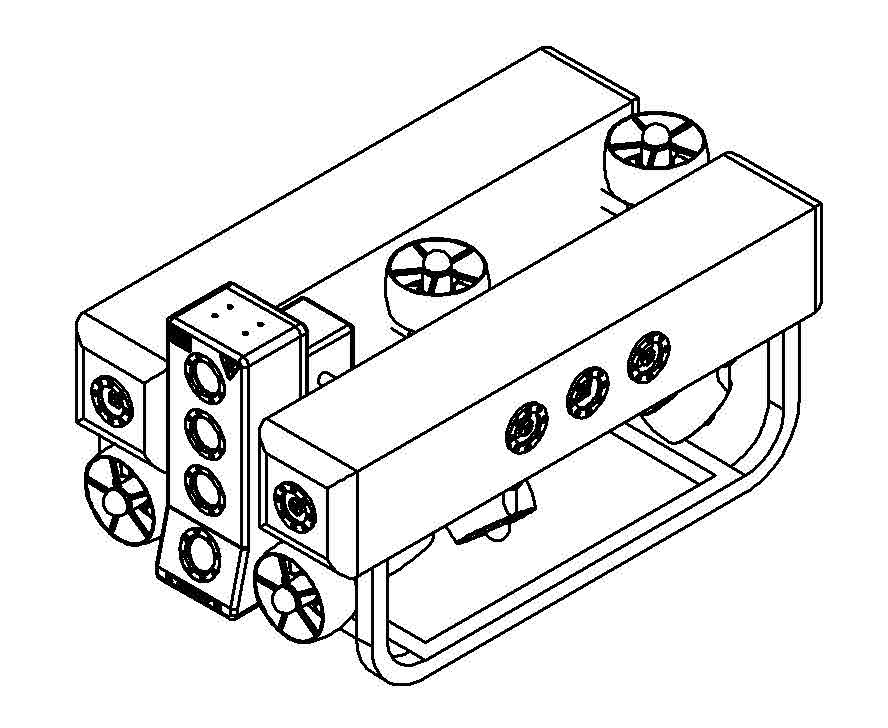

Newton Labs SW1050UW Isometric Newton Labs

For information on Newton Labs underwater products, please contact:
sales@newtonlabs.com

Specifications for the SW1050 Underwater Drone
Mounted with the Newton M310UW Underwater Laser Scanner

For full details on the M310UW Laser Scanner, please click here: Newton M310UW Underwater Laser Scanner

Item Control Unit Camera Head
Technical Specifications
System Performance
Item
SW1050 ROV
Control Unit
Height 17.5 in. (444 mm) 14.75 in. (374.65 mm)
Width 18 in. (457 mm) 26.75 in. (679.45 mm)
Length 33 in. (838 mm) 27.50 in. (698.5 mm)
Weight (in air) 135 lbs. (61 kg) 84.5 lbs. (38.3 kg)
Weight (in water) Neutrally Buoyant ---
Construction Hard Anodized Aluminum Metal electronics rack suspended on eight shock absorbers within a molded, high-impact, airline-transportable case
LED ring arrays Adjustable Output High Intensity LEDS ---
Windows Pressure Rated Glass ---
Output ports --- Ethernet, USB, DVI, VGA & HDMI
Operating temperature 40° to 120° F (5° to 49° C) 40° to 110° F (5° to 43° C)
Storage temperature 0° to 125° F (-18° to 52° C) 0° to 125° F (-18° to 52° C)
Power input voltage/current Powered by the Control unit 240 VAC 50/60 cycle @ 20 Amps
Data storage --- Internal solid state drive
Maximum scanner-to-target distance 5 Meter (195") ---
Minimum scanner-to-target distance 150mm (6") ---
Watertight depth rating 100 Meters (328 ft) ---

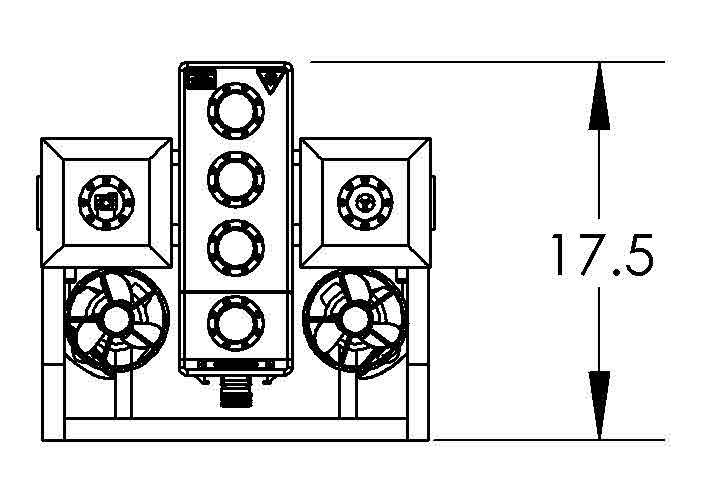

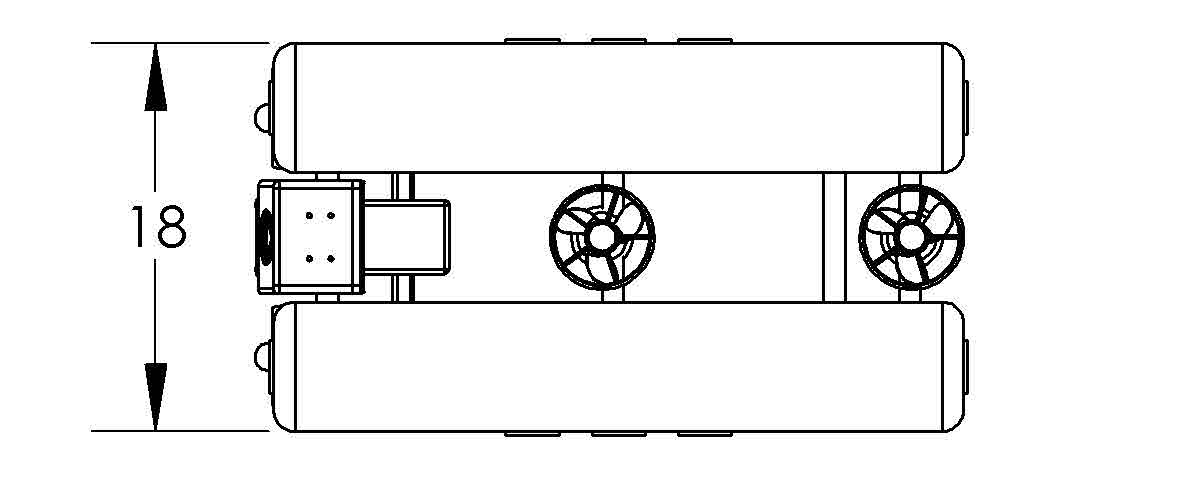

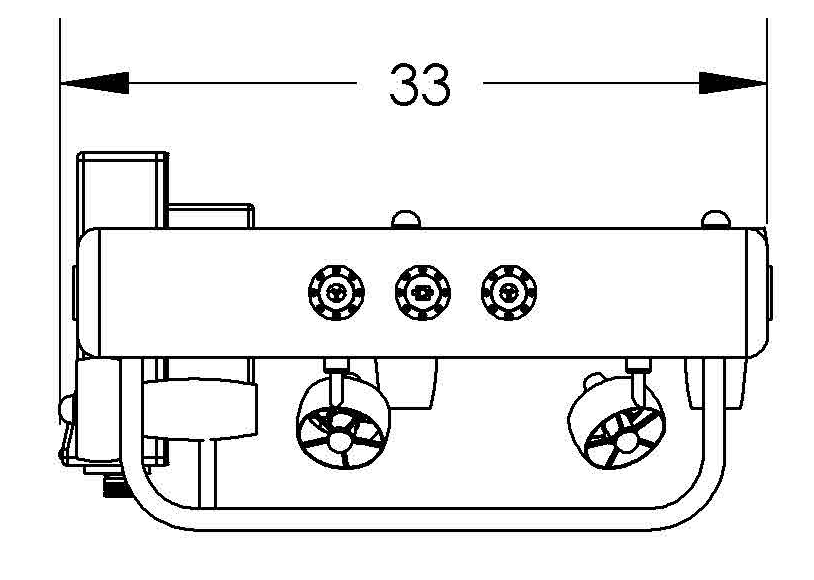

Front SW1050UW Side SW1050UW Top SW1050UW
