NM200EVT-1 Underwater Laser Scanner Measures with Sub-Millimeter Accuracy to produce CAD models combined with Color EVT-1, VT-1 and VT-3 Visual Inspection

Newton Labs manufactures the NM200EVT-1 Nuclear Underwater Laser Scanner specifically to provide enhanced visual color inspection and produce highly-accurate, sub-millimeter, non-contact CAD models of PWR or BWR internals.

The NM200EVT-1 Nuclear Underwater Laser Scanner with Color Enhanced Visual Inspection capability captures precise dimensional measurements in underwater radiation environments. It produces point clouds to make CAD models and provides precise, reliable and efficient dimensioning of as-built features, as well as to track cycle-to-cycle degradation in BWR and PWR vessels, cooling pools, or other underwater plant locations.

The scanning system has a demonstrated accuracy of 0.003" (0.076mm) or better and EVT-1 Visual resolution to meet or exceed ASME XI and MRP227. It combines rugged, industrial-grade hardware and electronics with sophisticated software to enable the generation of fully measurable CAD models from dense and accurate point clouds. CLICK HERE to learn more.

Elements of the NM200EVT-1 System

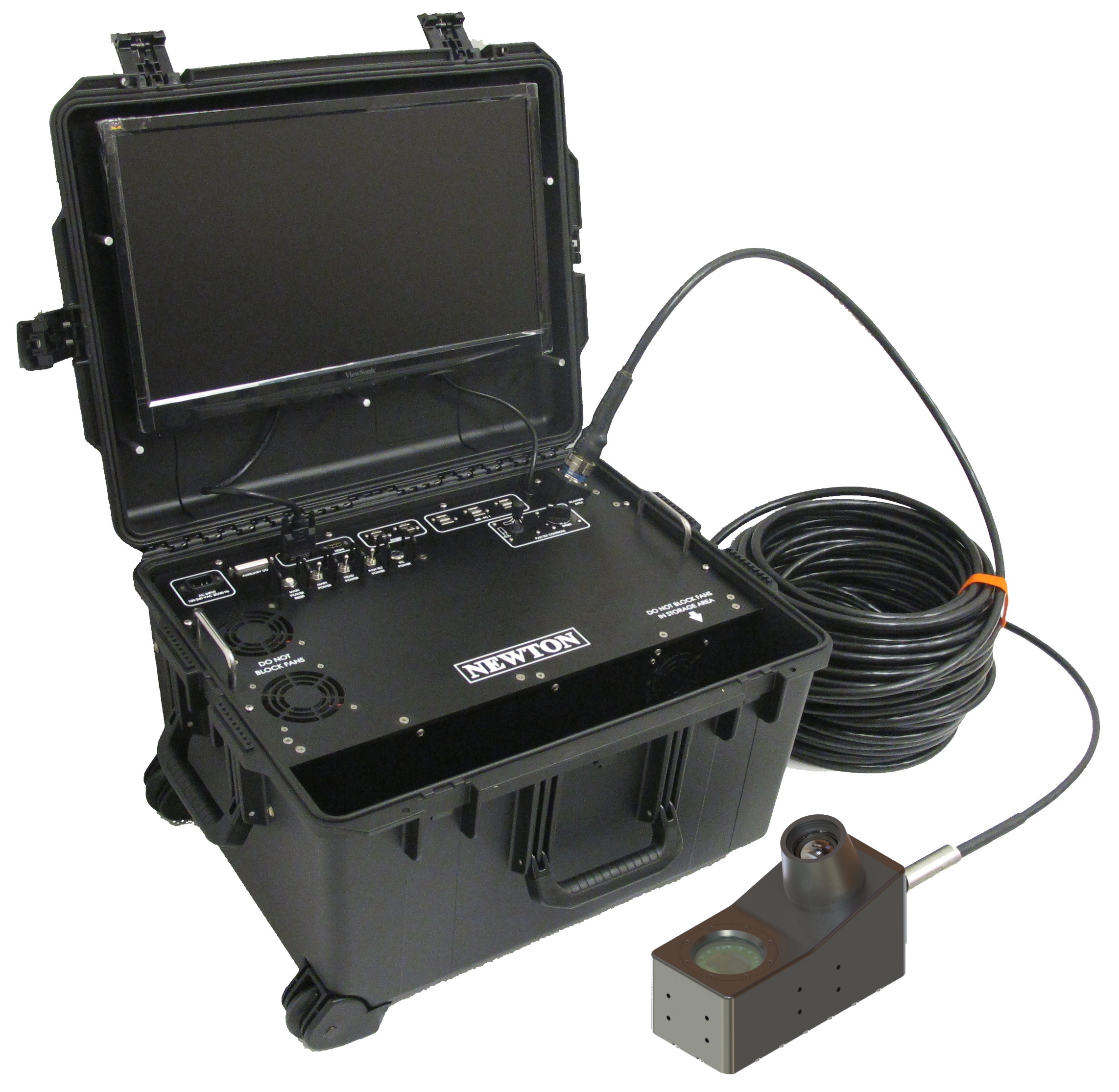

NM200EVT-1 Laser Scanner Control Console	NM200EVT-1 Nuclear Underwater Laser Scanner

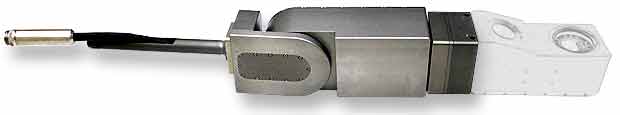

Optional Pan-Tilt Arm for the NM200EVT-1 / DETAILS HERE
